EXTRACTOR PRESSURE PLATE CELL, 1 BAR HIGH FLOW
|
We are having email issues with quotes not getting through. Please email directly to sales@soilmoisture.com. We apologize for any inconvenience this may cause.

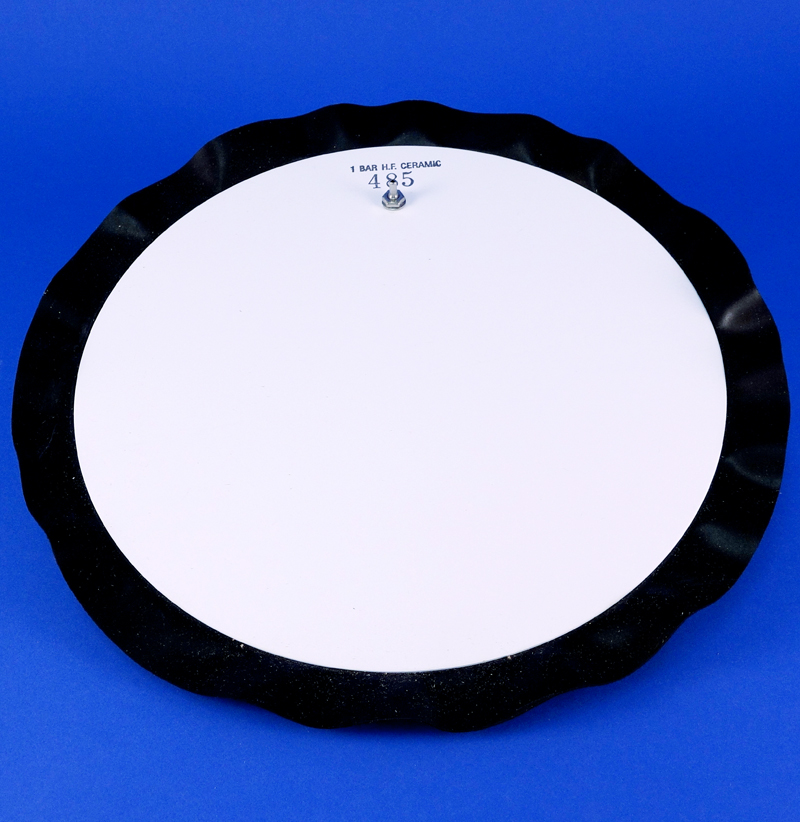

EXTRACTOR PRESSURE PLATE CELL, 1 BAR HIGH FLOW
Product Info
Description
Developed from a high fired Alumina body. Extremely porous, inert to most all solutions, possesses hard exterior and interior surfaces, and pure white in color. Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: .0000086 cm/sec. Approximate porosity: 45% by vol. Flow through
Specs
Weight: 2.60 lb. Diameter: 10.75 inches (27.30 cm)
Applications
- Soil Water Retention
- Soil Physics
- Mining
