EXTRACTOR PRESSURE PLATE CELL, 15 BAR STANDARD
|
We are having email issues with quotes not getting through. Please email directly to sales@soilmoisture.com. We apologize for any inconvenience this may cause.

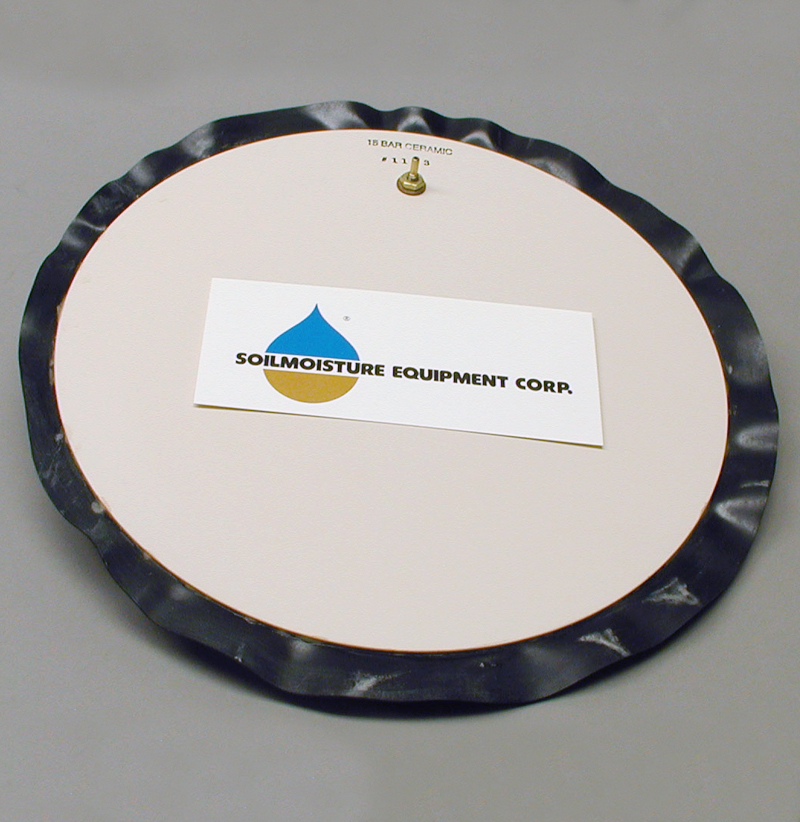

EXTRACTOR PRESSURE PLATE CELL, 15 BAR STANDARD
Product Info
Description
Developed from a proprietary mixture of ball clays fired to a ceramic body. Pinkish-tan in color, moderately hard and will withstand pressure differentials of 15 Bar (217.5 psi). Typical bubbling pressure: 220 psi. Effective pore size: 0.16 micron. Hydraulic conductivity: .00000000259 cm/sec. Approximate porosity: 32% by vol. Flow through
Specs
Weight: 1.80 lb. Diameter: 10.19 inches (25.88 cm)
Applications
- Soil Water Retention
- Soil Physics
- Mining
