0652 Round Bottom, Straight Wall Ceramic Cup Series
::

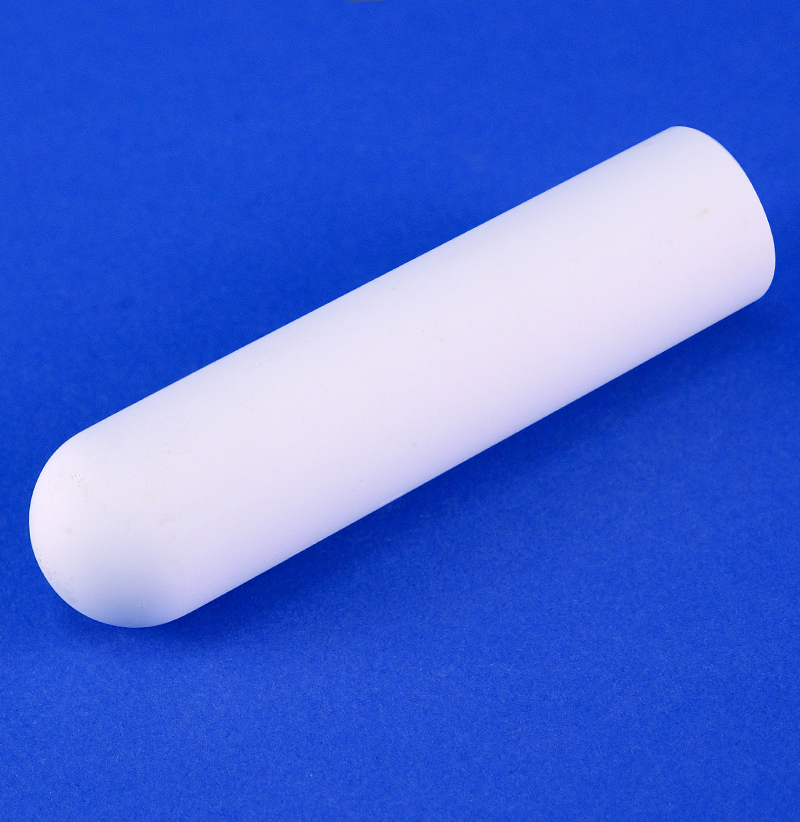

ROUND BOTTOM STRAIGHT WALL CUP, 0.87" OD X 3.5" LONG, 0.5 BAR
|
We are having email issues with quotes not getting through. Please email directly to sales@soilmoisture.com. We apologize for any inconvenience this may cause.
ROUND BOTTOM STRAIGHT WALL CUP, 0.87" OD X 3.5" LONG, 0.5 BAR
Product Info
Description
Developed from a high fired Alumina body. Extremely porous, inert to most all solutions, possesses hard exterior and interior surfaces, and pure white in color. Recommended for standard pressure differentials under 0.5 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: .0000086 cm/sec. Approximate porosity: 45% by vol. Flow through. All cups are "as cast".
Specs
Diameter: 0.875 inches (tol. +0.030/-0.000"), 2.223 cm (tol. +0.076 /-0.000 cm)
Length: 3.500 inches (tol. +0.090/-0.063"), 8.890 cm (tol. +0.229/-0.160 cm)
Wall Thickness: 0.250 inches (+0.030/-0.000"), 0.653 cm (+0.076/-0.000 cm)
Weight: 3.75 oz/106.29 gms
Applications
- Soil Water Retention
- Soil Physics
- Mining
